Printer Upgrade Kit for BATMTwo and BATMTwoPro
The Printer Upgrade Kit adds a paper-receipt printer to an existing BATMTwo or BATMTwoPro. It installs in minutes — by a single person, with no drilling required — so operators can offer printed receipts wherever local regulations demand them.
Information
The Printer Upgrade Kit was developed in response to changing legislation — notably in the US — where customers are increasingly required to receive a printed paper receipt, and SMS or e-mail confirmation is no longer accepted. Many BATMTwo and BATMTwoPro units were sold before a printer became a requirement, so this kit gives operators a simple way to bring those machines into compliance.
A BATMTwo paired with the Printer Upgrade Kit is the most economical way to run a BATM with a printer.
Key Features
- No drilling, one-person install — connects to the existing terminal through internally routed cabling.
- Existing and new machines — fits BATMTwo and BATMTwoPro units already in the field as well as brand-new ones.
- Proven thermal printer — the same unit used inside other BATM models.
- Integrated look — steel body finished in the color of the machine head.

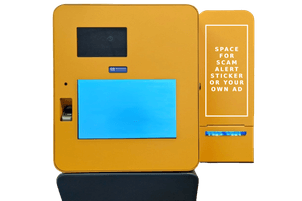

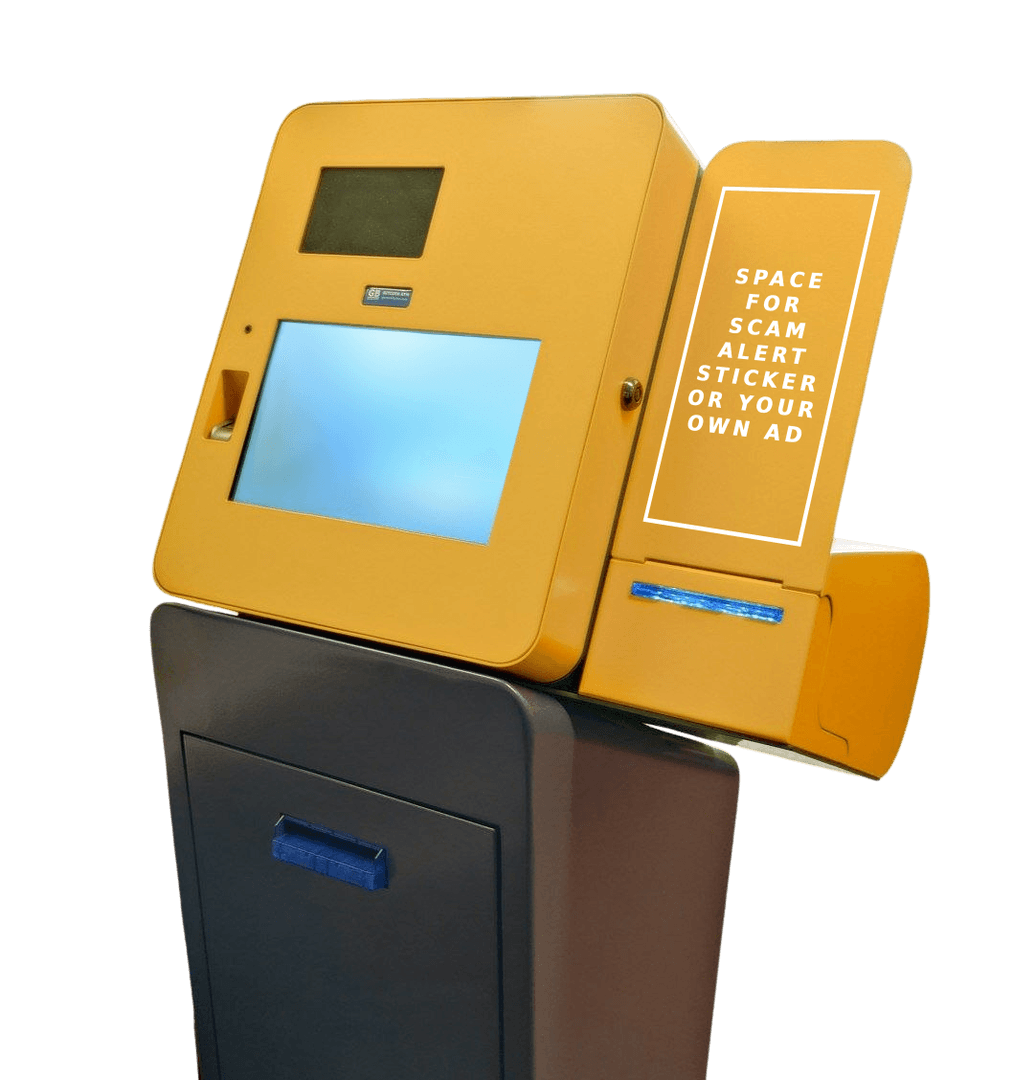

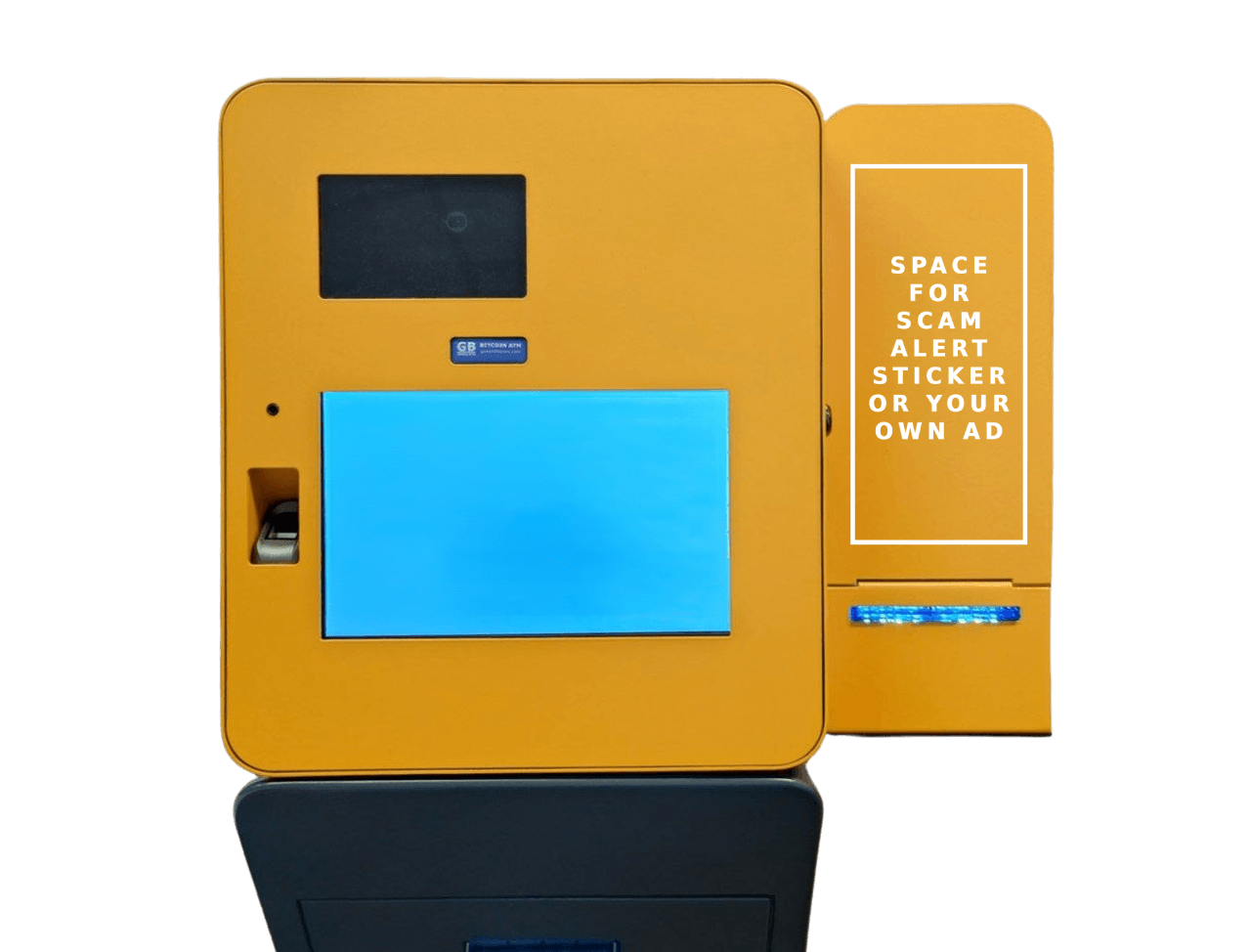

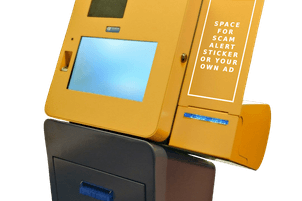

- Extra branding surface — the enlarged front panel adds a new area for marketing or information, ideal for an anti-scam warning.
- Easy maintenance — paper is reloaded from the outside; unlock and lift the top cover to swap the roll.
Installation & Maintenance
Installation is fast and can be done by a single person, on a machine with or without a stand. The printer connects to the existing terminal through internally routed cabling — no drilling and no second pair of hands needed. The unit is firmly bolted to the machine, and its steel body is finished in the color of the machine head for a clean, practical result.

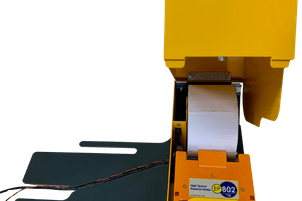

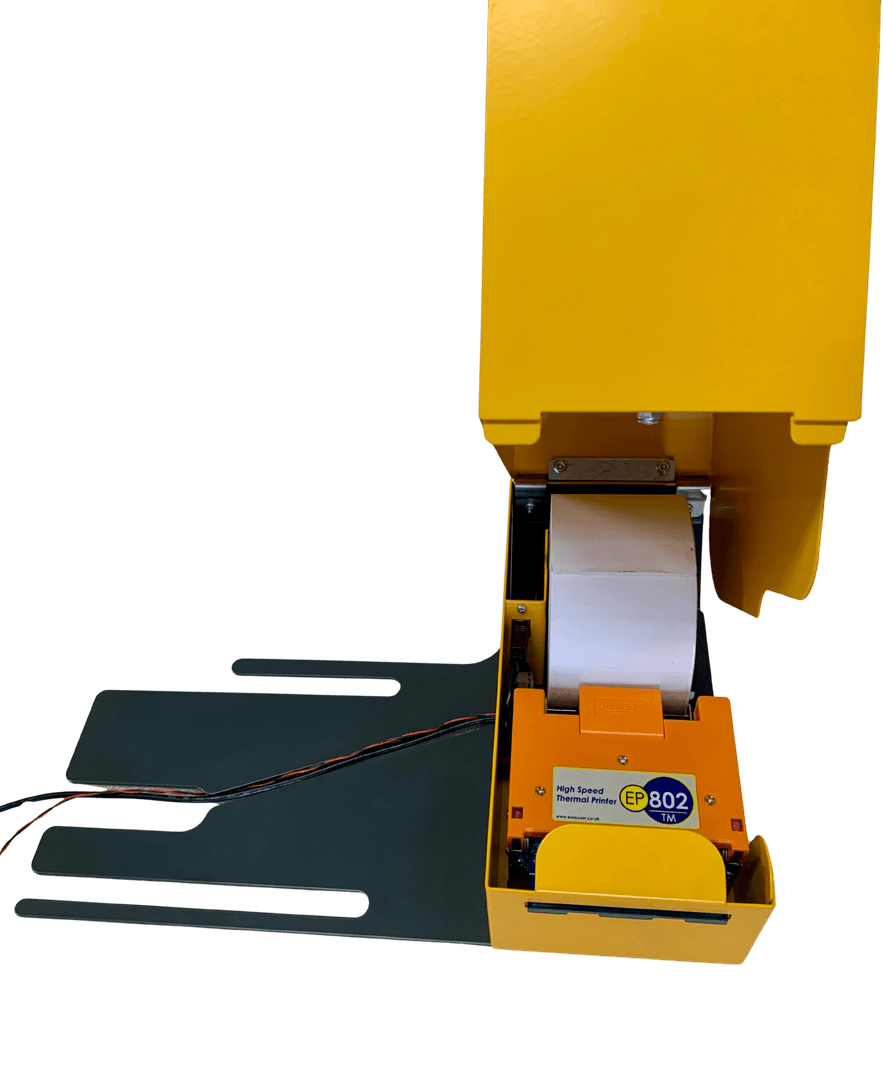

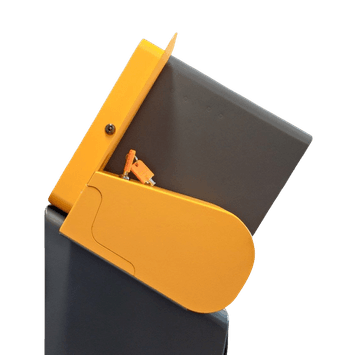

Paper is reloaded from the outside: unlock and lift the top cover to swap the roll.
A step-by-step installation guide will be available in our Knowledge Base, followed by an instructional video. Place a non-binding order directly here on the web.
Technical Specifications
- Printer type: Thermal (same unit used inside other BATM models)
- Power input: 100–230 V, 50–60 Hz (same as BATM)
- Power consumption: < 5 W idle, ~30 W while printing
- Connectivity: USB, connected directly to the motherboard
- Dimensions (uninstalled): 383 mm (H) × 430 mm (W) × 302 mm (D)
- Installed footprint: +142 mm width on the right side of the BATM
- Clearance when open: +26 mm behind the head to fully open the cover
- Material: Steel (3 mm / 1.5 mm / 1 mm depending on the part)

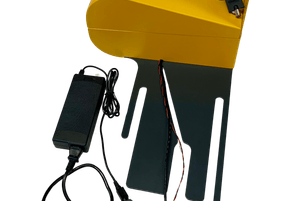

- Mounting: Sandwiched between stand and head, or under the head with an extra cover plate

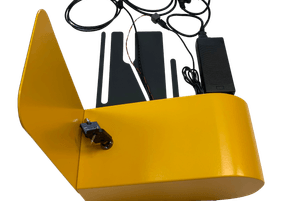

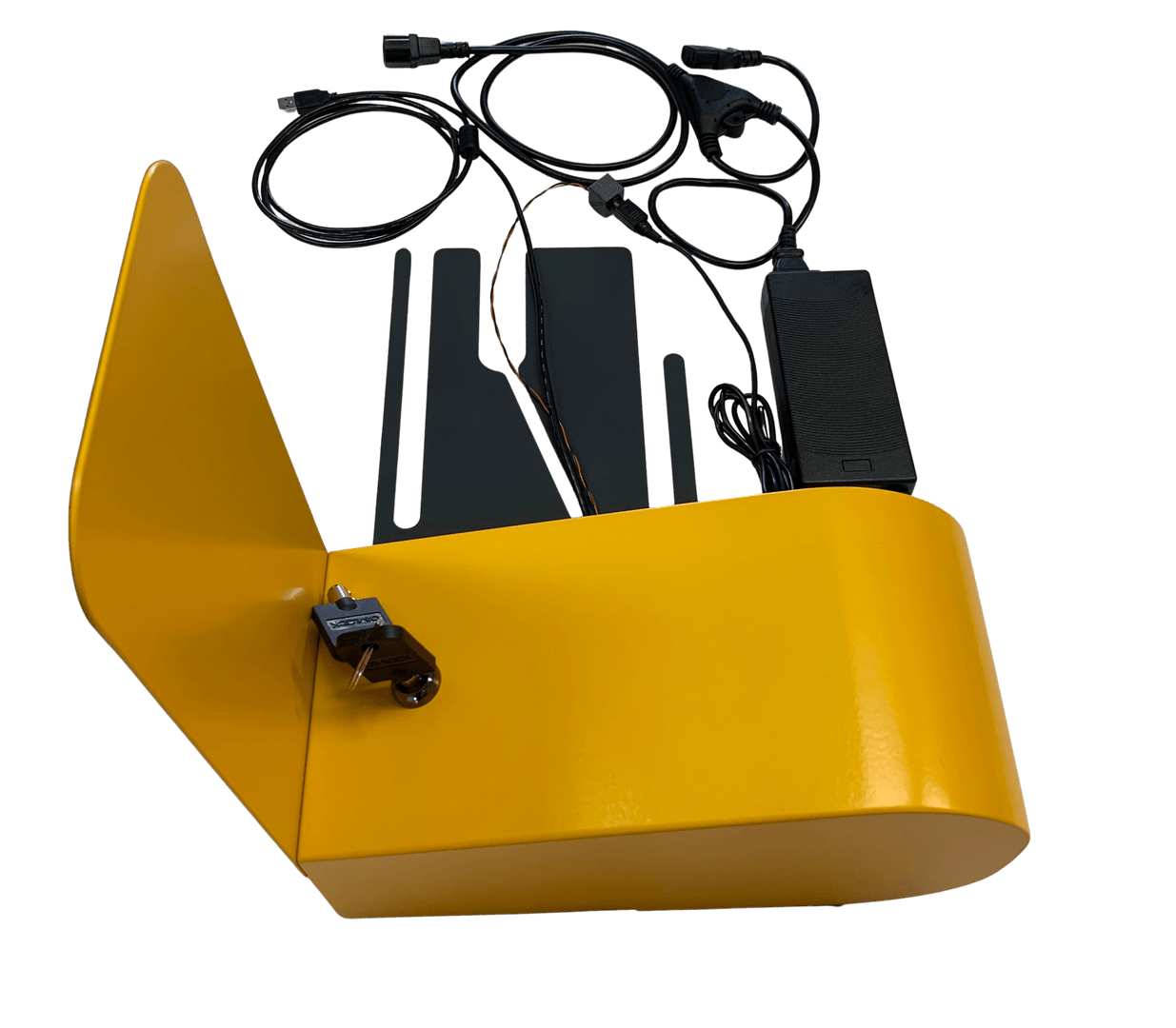

- Security: 1× octagon T8 lock
- Weight: 7.5 kg (incl. paper roll and power supply)
Compatibility
The Printer Upgrade Kit fits all BATMTwo and BATMTwoPro terminals — both units already in the field and brand-new machines.
- Mounting options: Sandwiched between the stand and the head, or under the head with an extra cover plate.
- Installation: No drilling, single-person fit using internally routed cabling.
- Manuals: Assembly and customer installation guides will be available in our Knowledge Base.

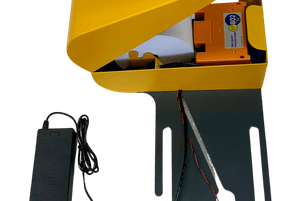

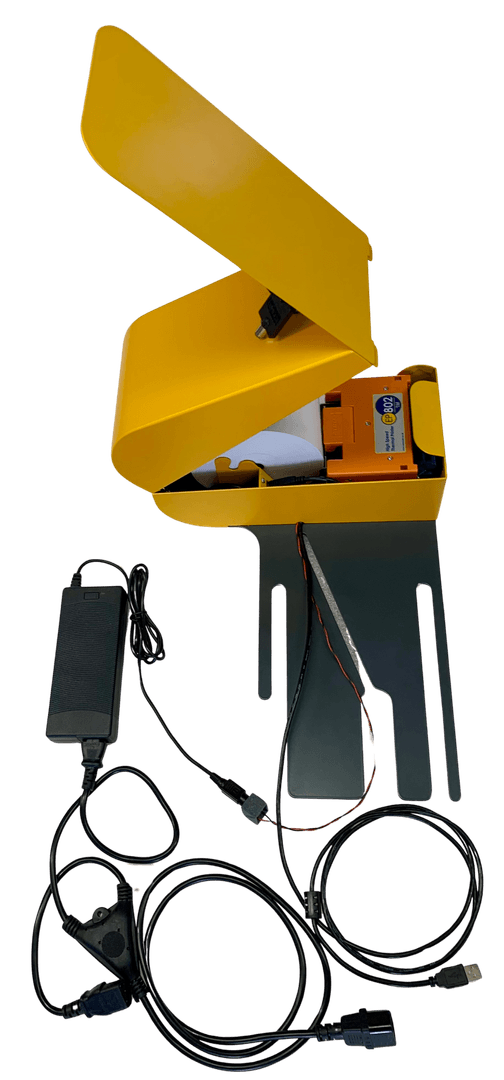

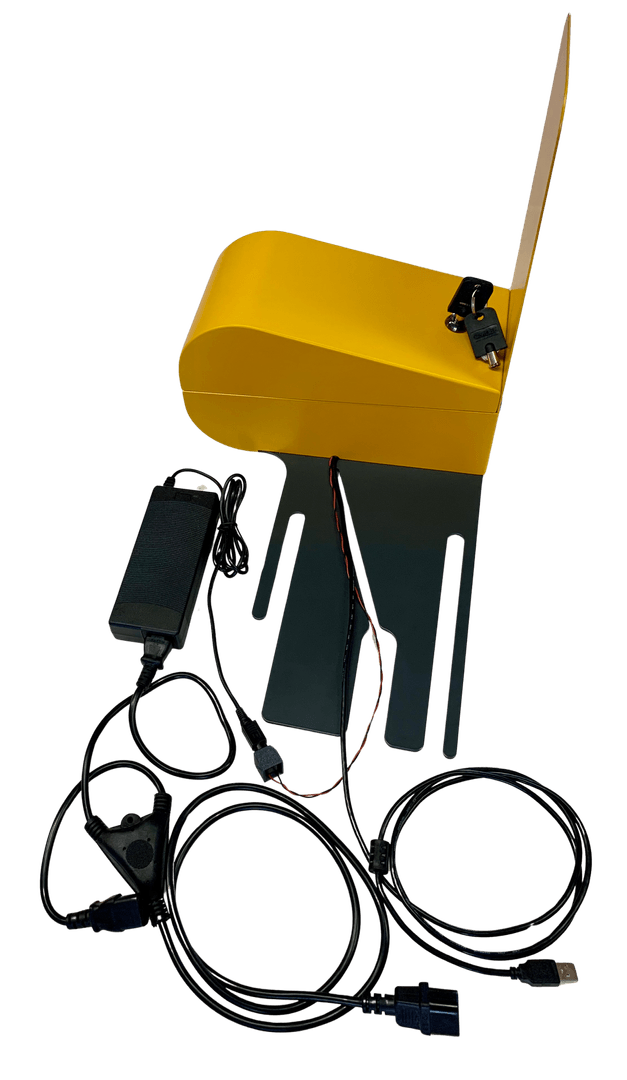

Photos
