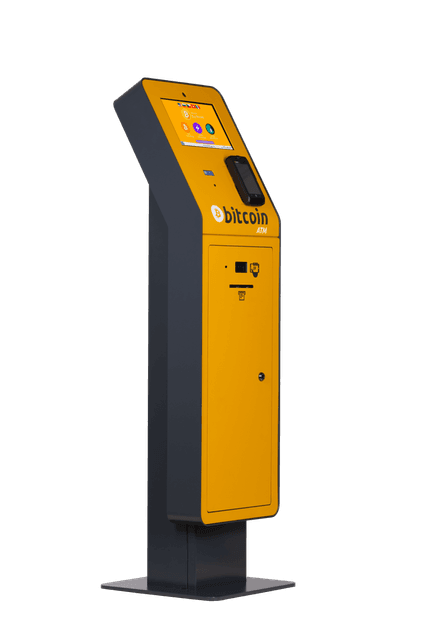

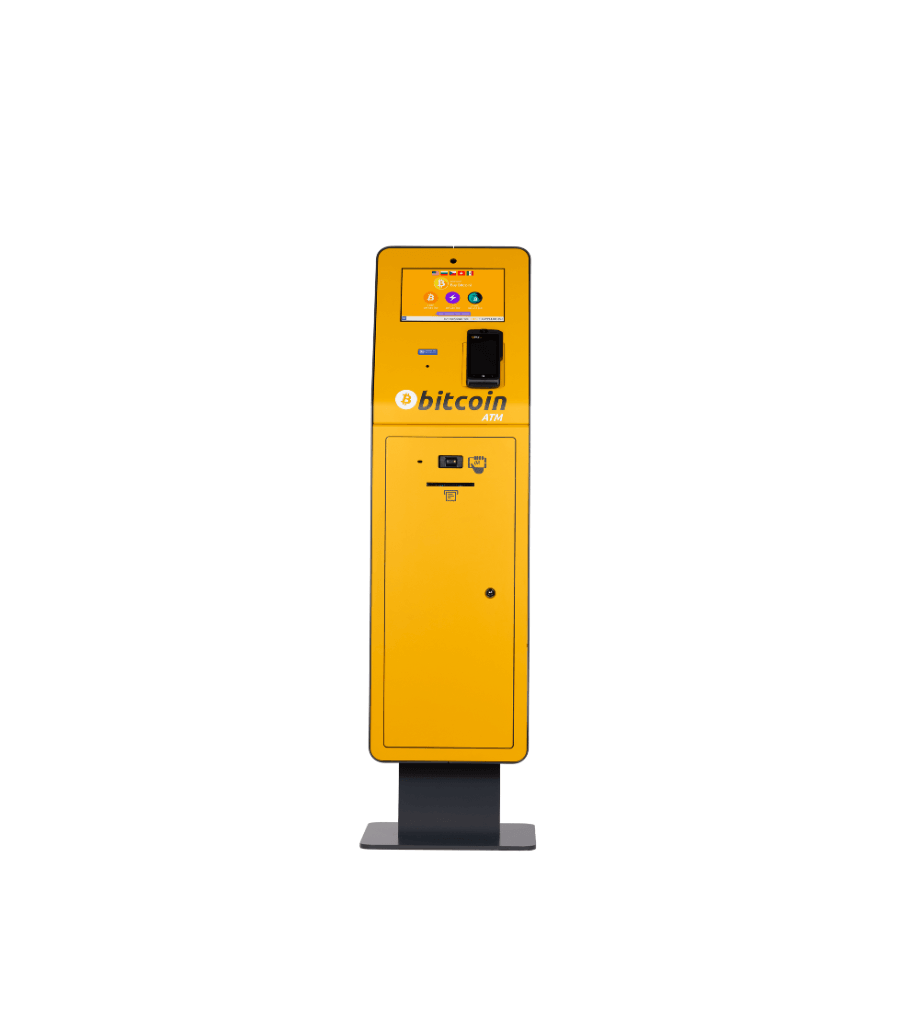

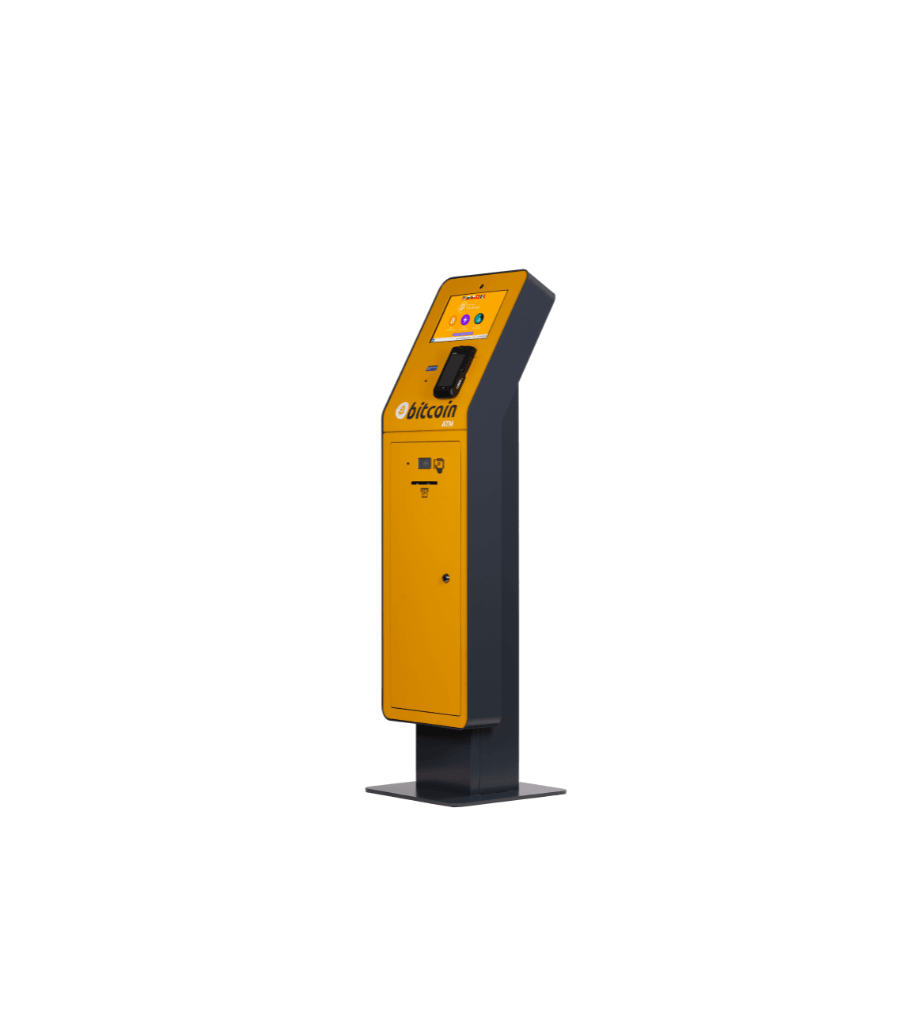

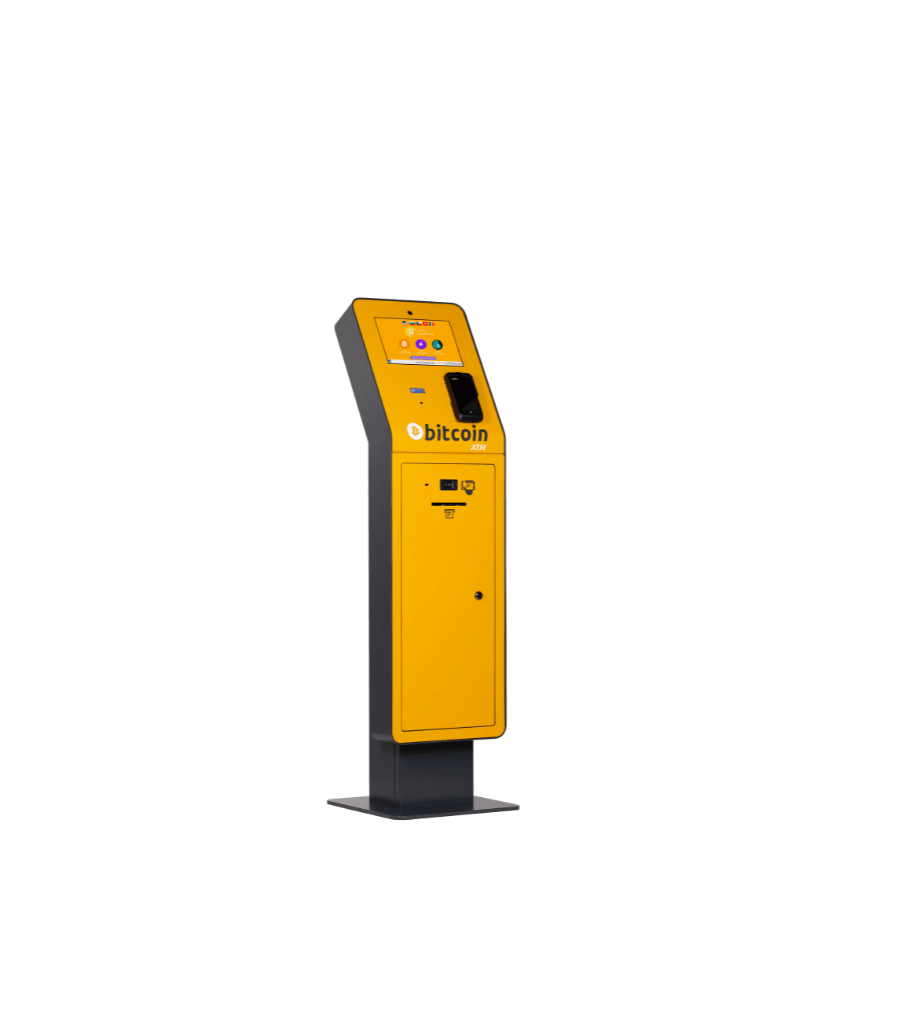

BATMSeven
„Less hassle with paper money“ – the payment card-only BATMSeven is a minimalist, cashless ATM with a small footprint, designed for easy cryptocurrency purchases

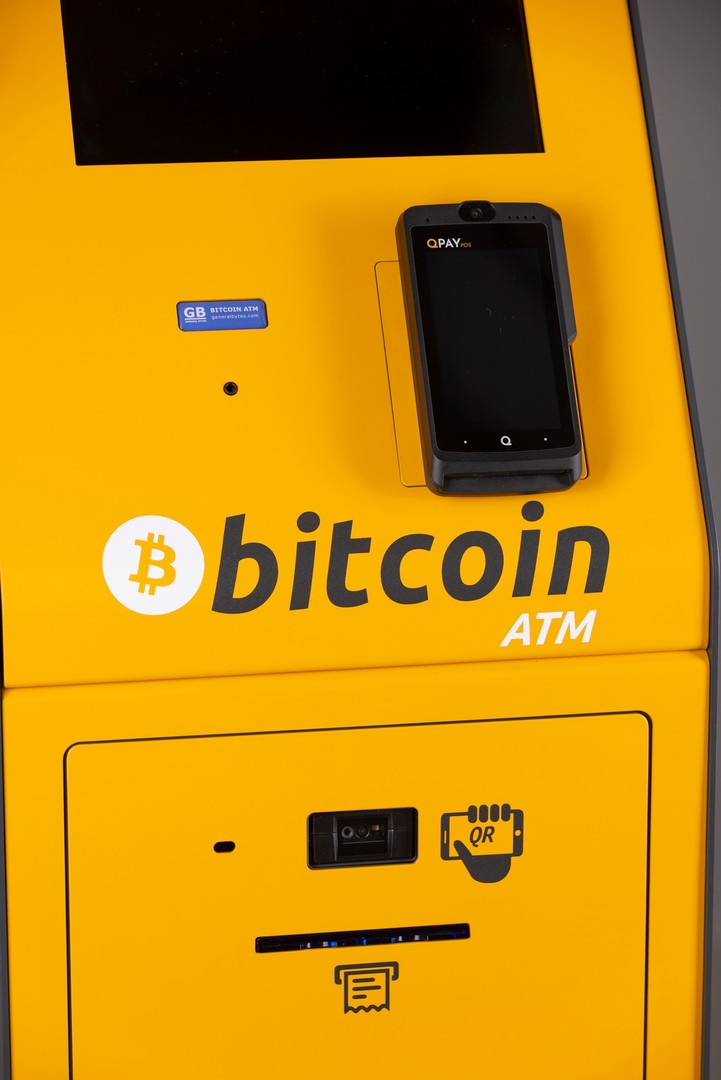

The BATMSeven is designed as a simple yet capable one-way crypto ATM for payment card-only purchases. Despite its minimal and affordable nature, it comes equipped with everything needed for smooth operation: a bright touchscreen for easy navigation, an integrated camera, and a QR code reader for quick transactions. For added flexibility, it can also include an optional receipt printer.
Accessibility is built in thanks to an audio jack that guides visually impaired users, while a proximity sensor detects the presence of a customer, technician, or potential intruder in front of the machine to trigger the right response.
Compact, practical, and thoughtfully equipped, the BATMSeven delivers essential features in a streamlined form.
Payment card-only crypto ATM
The BATMSeven is a cashless model built exclusively for crypto purchases via payment cards.
One-way design for simplicity
This model is one-way, intended only for buying cryptocurrencies. It does not include cashboxes or bill acceptors, keeping the hardware minimal and the operation straightforward, and reducing operational expenses.
Minimized chargeback risk

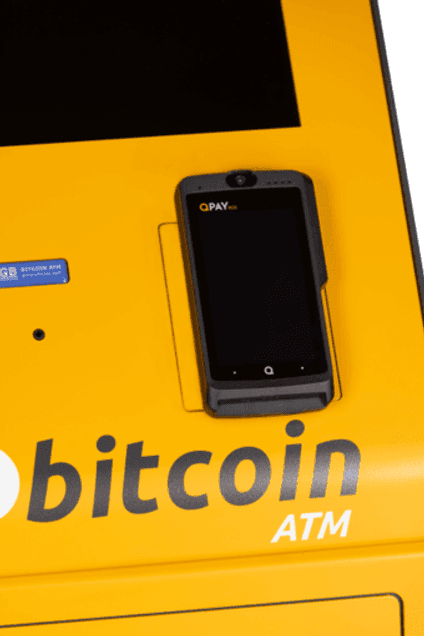

Card payments at the BATMSeven are processed with card-present, chip-and-PIN verification, meaning transactions are fully authenticated at the terminal. Because of this, banks generally do not recognize chargeback claims, protecting operators from one of the most common risks of card-based sales.
Favourite design

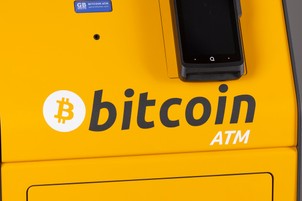

Inspired by our most popular model, the BATMTwoUltra, the BATMSeven comes in striking Bitcoin colors, combining familiarity with a fresh, modern look.
Compact and versatile
With its small footprint, the BATMSeven fits easily in any location, making it ideal for stores, cafes, or other public spaces without taking up much room.
Bitcoin ATM for a cashless future
The BATMSeven is built for operational efficiency. As a fully cashless model, it eliminates the need for cash collection and handling, allowing operators to reduce operating costs significantly.
Instant crypto purchases, no apps needed
Unlike online exchanges, the BATMSeven lets customers buy cryptocurrency instantly the moment they encounter the machine—no app installation or account setup required.
Optional cash handling with GBSafe
While the BATMSeven is designed as a fully cashless ATM, it can be optionally paired with the GBSafeOne Smart Safe unit for situations where cash acceptance becomes necessary.
This setup allows the BATMSeven to initiate a crypto purchase transaction, and if you ever need to accept cash — for example, due to regulatory requirements, in-person KYC verification, or simply by choice — the transaction can be conveniently completed via a nearby GBSafeOne.
The GBSafe securely stores deposited cash—either by the customer or by authorized personnel—providing a flexible way to extend the BATMSeven’s functionality without changing its minimalist design.

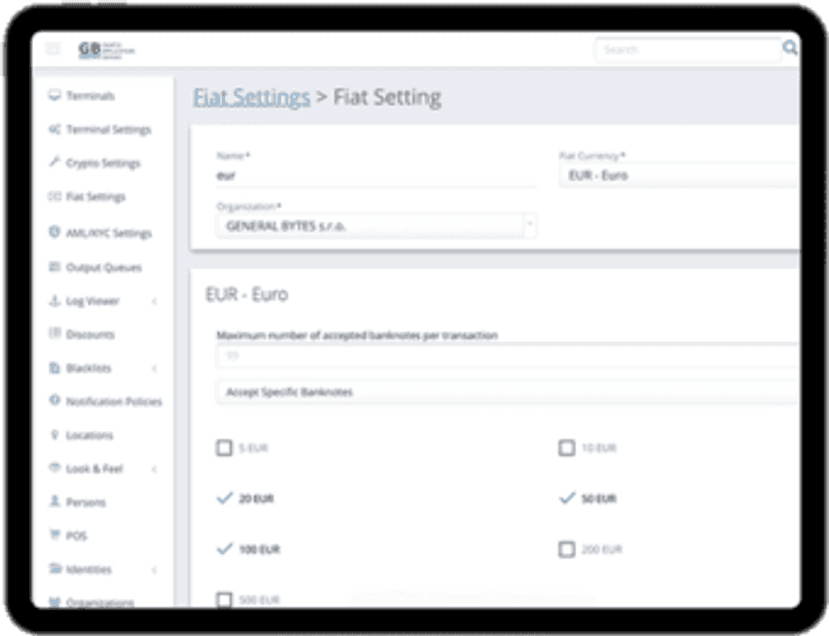

Powered by CAS software
All our ATMs, including the BATMSeven, run on the GENERAL BYTES Crypto Application Server (CAS). This powerful back-end system gives operators a wide range of tools to manage their network of ATMs securely and efficiently.
With CAS, you can configure FIAT currencies, languages, cryptocurrencies, notifications, perform remote software upgrades, and define your own KYC/AML rules to meet regulatory requirements, and much more. The platform also enables full remote management and monitoring, helping you save time and reduce operational overhead.
CAS supports an extensible portfolio of 40+ cryptocurrencies, integration with multiple exchanges, and connections to a variety of hot wallets to help mitigate volatility risks. This flexibility makes it easy to tailor your ATM business to your specific needs while remaining future-proof as the crypto ecosystem evolves.
Technical Specification
| Dimensions | 125 cm (H) x 36 cm (W) x 36 cm (D) / 49.21 in (H) × 14.17 in (W) × 14.17 in (D) |
|---|---|
| Weight | 43 kg |
| Power consumption | 20W (10W in idle state) |
| Power input | AC 100-240V 50-60Hz (Japan, US, Australia, Europe, Asia, and other) |
| Internet connectivity | WiFi (b/g/n) 2,4GHz+5GHz + Ethernet 1000Mbit |
| Crypto address entry | QR code scanner, e-mail address, or cell phone number. |
| Material | 1,5 mm cold-rolled steel |
| Display | 10” IPS capacitive |

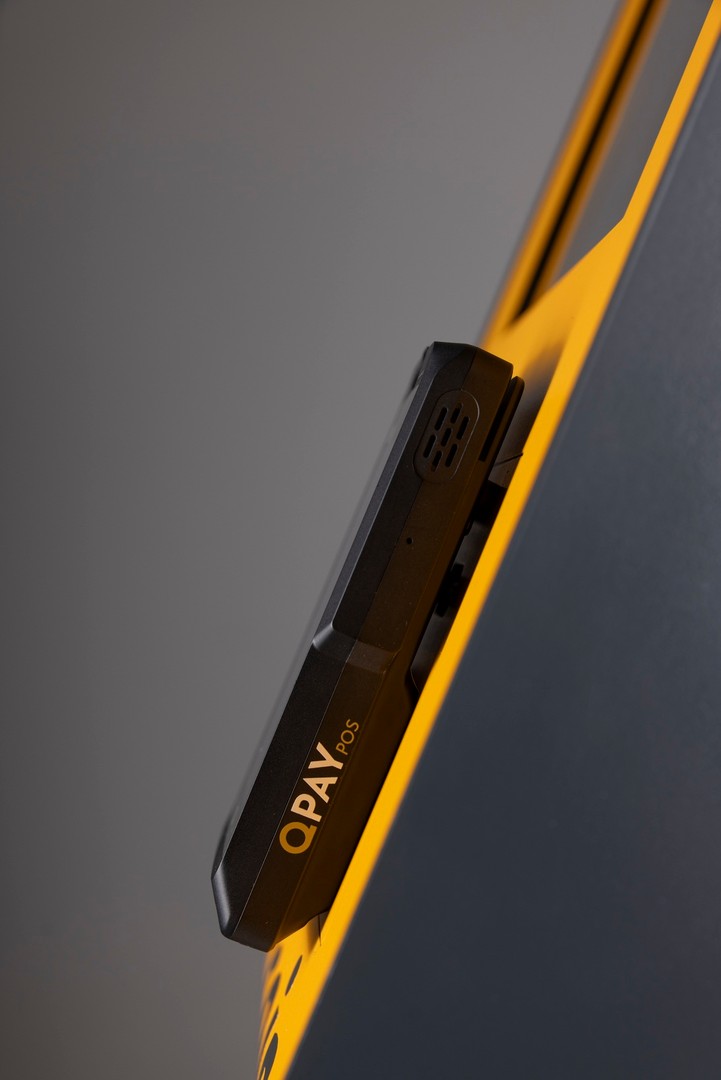

| CAS-ready POS | Card payment terminals Q5000 (WiPay) and Valina |
| Supported POS | Hardware: EVA/CVS 1.3 Standard Door Module (SDM) compatible readers Software: Standardized interface TIM API (EPAS) or CTEP protocol |

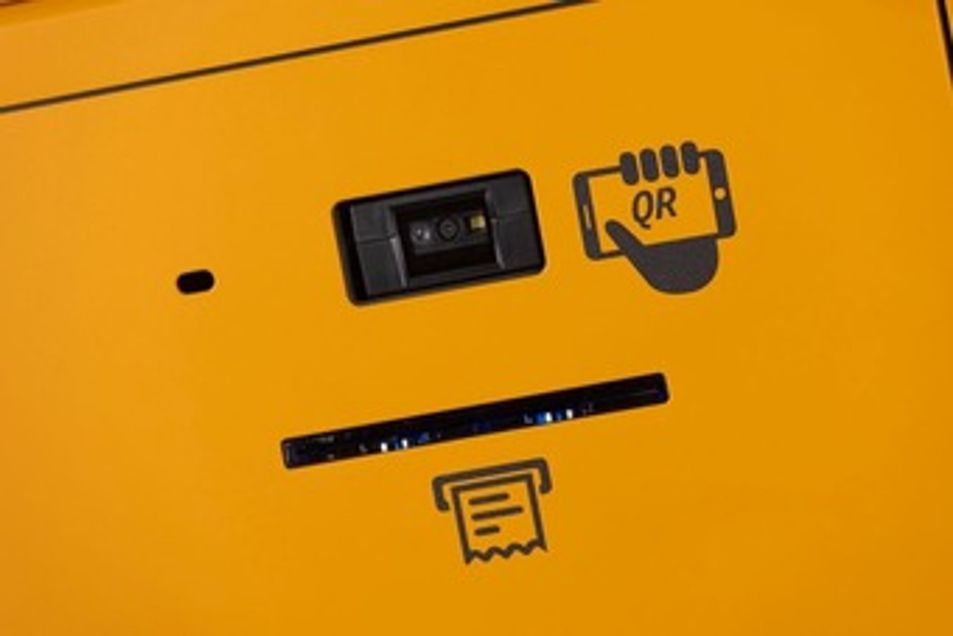

| Code scanner | 2D code scanner (supports QR code, PDF417, and many more) |
| Proximity sensor | Object present sensor (detect customers up to 2m in front of the machine for improved human interaction |
| Printer | Thermal printer with 3” / 80 mm paper for printing wallets and receipts. Printer is optional. |
| Security | There are two high-security standard cam locks: one for the top door and the second for the bottom door. An auditable electronic safe lock is not supported. |
| Camera | Supports selfie capture and security recording |
| Audio jack | Provides audio guidance for visually impaired users to navigate the machine |
| CE Conformity | European Directives: 206/95/EC, 2004/108/EC. |
| Standards | EN 60335-1:12, EN 60335-2-82:03+A1:08, EN 55022:10, EN 55024:10, EN 61000-3-2:06+A1:09+A2:09, EN 61000-3-3:08. |
| Mounting options | Designed to be bolted onto the floor. |
Pictures

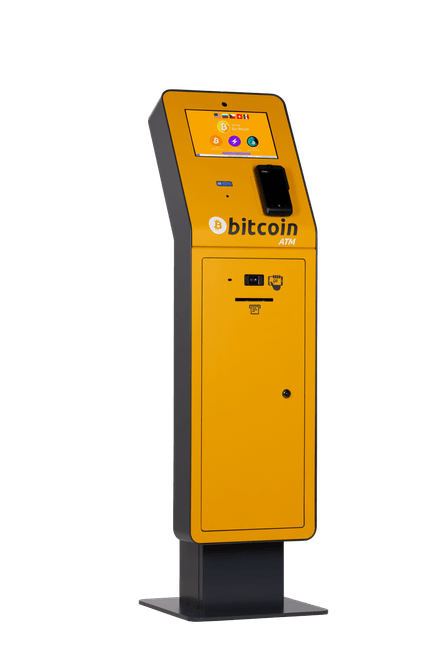

BATMSeven
