BATMFour

The BATMFour is our newest BATM based on the same features as the BATMThree platform. Bidirectional (cash to crypto, crypto to cash). Individual configuration. Distributes coins from wallet or crypto exchange. Color changing neon lights catch the attention of people walking by.

BATMFour

Information

The brand new BATMFour incorporates feedback from our customers and their requirements. The beautiful and sleek design saves space and is an attractive focal point for any location. It is designed to be self-standing and can be mounted to the floor for extra security. The BATMFour is the ideal choice for your Bitcoin, cryptocurrency or blockchain-token project. The platform contains our most innovative features.

Bitcoin ATMs provide a way for customers to buy or sell cryptocurrency in a simple and secure way. The new generation of BATMFour platform offers individual configuration allowing you to choose only what you need. Depending on your selection, the BATMFour can be unidirectional (cash to cryptocurrency) or bi-directional (converting cash to cryptocurrency and/or cryptocurrency to cash), one of the new trends in the cryptocurrency industry. You can also choose from extended options like NFC capabilities or a GSM tracking alarm. Included is a thermal printer for printing wallets and receipts (paper roll can be ordered from us). Flexibility is key!

The BATMFour needs to be connected to the GENERAL BYTES server software called CAS. This server software allows you to exchange and buy back coins, and manage your wallets, configuration, fleet management, and much more.

We recommend our clients to install the server software (BATMServer / CAS) on their own hardware or on the cloud. For example, digitalocean.com (only 20 USD / month, click here for 10 USD discount). If you prefer not to operate your own server we can run it for you for a small fee of one-half percent (0.5%) of all cash transactions.

Features

Unidirectional and Bidirectional

The BATMFour has the capability to convert cash to cryptocurrency, as well as convert cryptocurrency to cash. When you configure your machine, you determine whether your BATMFour is unidirectional or bidirectional.

Selling process

1. The customer indicates how much cash they would like to withdraw.

2. The BATMFour will check its cash inventory to ensure it is capable of dispensing the requested amount.

3. The BATM prints out a redeem ticket containing instructions and a QR code with the amount of cryptocurrency the customer must send to the machine.

4. After the customer sends the crypto to the machine, he/she is notified automatically by SMS that the withdrawal is ready.

5. The customer scans the redeem ticket and the BATM dispenses the cash.

6. Meanwhile, the BATM can be configured to automatically sell any collected crypto on the connected exchange, reducing operator risk.

Supported Cryptocurrencies

40+ cryptocurrencies supported. BTC (Bitcoin), BCH (Bitcoin Cash), ETH (Ethereum), LTC (Litecoin), DASH, XMR (Monero), DOGE (Dogecoin), ANT (Aragon Network Token), BTXX, BURST, CLOAK, SMART (SmartCash), FTO, GRS, ICG, LEO, LINDA, LSK, MAX (MaxCoin), MEC, MKR (Maker), NBT, NXT, PAC, REP, START, SUM, SYS, TKN, USDT, VIA, WDC, XMR, XZC.

The GENERAL BYTES developers typically do not implement alternative coins on request. Adding a new coin explicitly depends on the community and developers of those coins.

Extensible

You can implement support for any coin or extend current functionality with Open API hosted on Github.

NFC card support (optional)

The BATM machine issues the customer an NFC card containing the bitcoin private key. The customer can later use this card as a bitcoin wallet to receive and send bitcoins by placing the card on an NFC reader. Additionally, we offer ATM operators card branding services which make the card not only a wallet, but also a business card. Cards can also be used as a payment tool with our Point of Sale terminal or used with multiple android applications. NFC cards were integrated to improve:

  • Ease of use. NFC cards function similarly to a typical credit card. They add an element of familiarity to someone who is new to crypto.
  • Durability. Customers have the option to print paper wallets, but the durability is lacking. Plastic NFC bitcoin wallet cards fit well into your regular wallet next to Visa or MasterCard.
  • Loyalty. The NFC card can work as a loyalty card, dispensing loyalty tokens instead of bitcoin.
  • Great Price! NFC cards cost only 0.4 USD and are therefore an ideal branding opportunity for ATM operators.

Point Of Sale integrated

Eliminate the need for additional hardware to accept bitcoin payments and start accepting bitcoin for products sold in your store via your own Bitcoin ATM! One awesome feature unique to the General Bytes BATMFour is the capability of staff members to receive their tips in bitcoin on their own wallet address. You can also opt to automatically get your bitcoin payments converted to fiat by connecting to a payment processor (Bitcoinpay.com).

You can also opt to automatically get your bitcoin payments converted to fiat by connecting to a payment processor. (Bitconpay.com)

Secure by design

  • The Bitcoin ATM Terminal only communicates with the server over HTTPS.
  • The BATM / CAS server communicates with cryptocurrency exchanges and hot wallets.
  • The ATM does not store any cryptocurrency itself.
  • Hot wallets for the ATM can be online or self-hosted.

No volatility risks

Unlike other Bitcoin ATMs, purchases are made on the configured cryptocurrency exchange at the time of cash insertion. This reduces volatility risks for an operator. Operators can also choose to run in a standalone mode with no exchange involvement, a perfect option for those who already own the Bitcoin they want to sell. Exchange rates are updated every 30 seconds.

Supported exchanges: See table below
Supported hot wallets: See table below

Remote management and monitoring

Terminal configuration is retrieved from the server by the ATM. Configuration options on the server include online terminal status, current cash box contents, exchange rate, cash transaction limits (per hour, per day, per month), customer behavior, performed transactions and their status. The server sends end-user SMS and/or email notifications to the operator regarding certain events, such as when transactions are performed or when a specified level of cash in the terminal has been reached.

Remote software upgrade

Future software updates are distributed over the internet without the need for user intervention. This dramatically reduces operator expenses as there is no need to visit the ATM in person to perform an upgrade of the machine.

AML and KYC

A customer's identity can (optionally) be checked using the fingerprint reader, cellphone number verification, ID card scan or selfie verification to increase customer cash limits. AML / KYC laws differ throughout the world, but GENERAL BYTES is the only manufacturer flexible enough to accommodate even the tightest AML / KYC regulations.

The GENERAL BYTES ATM server is also capable of obtaining customer name and address details based on a cell phone number, and run instant background checks against terrorist watch lists. This is required for some markets, most notably the USA.

Notifications

Your ATM can notify you when cash inside of the machine reaches a certain threshold, when the ATM is offline for more than one hour, or whenever a transaction has been made. This way you know exactly what's going on with your ATM wherever you are.

Other features

Send receipts by SMS or email.
Send bitcoins via SMS (recipient will receive private key).

Supported Exchanges

In order to see the manual for each supported Exchange, please sign first up for our knowledgebase.

Exchange
Bitstamp.net
Coinbase.com
Bitfinex.com
TheRockTrading.com
Itbit.com
Kraken.com
Digitalx.com
Bitflyer.jp
Coinmate.io
Bittrex.com
HitBTC

Supported Hot Wallets

In order to see the manual for each supported Hot Wallet, please sign first up for our knowledgebase.

Wallet
Block.io
Uphold.com
Coinbase.com
Bitcoind/Bitcoin Core
Litecoind
Dogecoind
Bitcore
Coin.cz
Bitgo Express

Technical Specification

Power consumption 40W (130W in peak - stacking banknote)
Power input AC 100-240V 50-60Hz (Japan, US, Australia, Europe, Asia and other)
Internet connectivity WiFi (b/g/n) 2,4GHz/5GHz + Ethernet 1000Mbit
Currencies supported More than 120 (including USD, EUR..) + Multicurrency
Crypto address entry QR code scanner or e-mail address or cell phone number
Warranty 1 year
Languages

Chinese (ZH), Croatian (HR), Czech (CS), Dutch (NL), English (EN), French (FR), Georgian (KA), German (DE), Hungarian (HU), Italian (IT), Japanese (JA), Kazakh (KK), Korean (KO), Latvian (LV), Lithuanian (LT), Norwegian (NO), Polish (PL), Romanian (RO), Russian (RU), Serbian (SR), Slovenian (SL), Slovakian (SK), Spanish (ES), Swiss German (DE-CH), Ukrainian (UK), Vietnamese (VN) or translate into any other language yourself!

Dimensions 52,5x162,30x48,80cm / 20.66x63.90x19.21 inch.
Material 3mm iron
Display 23” FullHD - capacitive portrait
Mounting options Designed to be mounted on floor (mounting screws are not included)
Cash box capacity Up to 1200 banknotes
Recycler capacity Up to 120 banknotes. 2 denominations (up to 60 of each denomination)
Dispenser capacity 1000 banknotes. 2 denominations (500 of each denomination + extension box 2x up to 500)
Security Two high-security standard cam locks + electronic safe lock
Printer Thermal printer with 3” / 80 mm paper for printing wallets and receipts
CE Conformity European Directives: 206/95/EC, 2004/108/EC
Standards EN 60335-1:12, EN 60335-2-82:03+A1:08, EN 55022:10, EN 55024:10, EN 61000-3-2:06+A1:09+A2:09, EN 61000-3-3:08
Weight 125kg / 231lbs

Video

Pictures

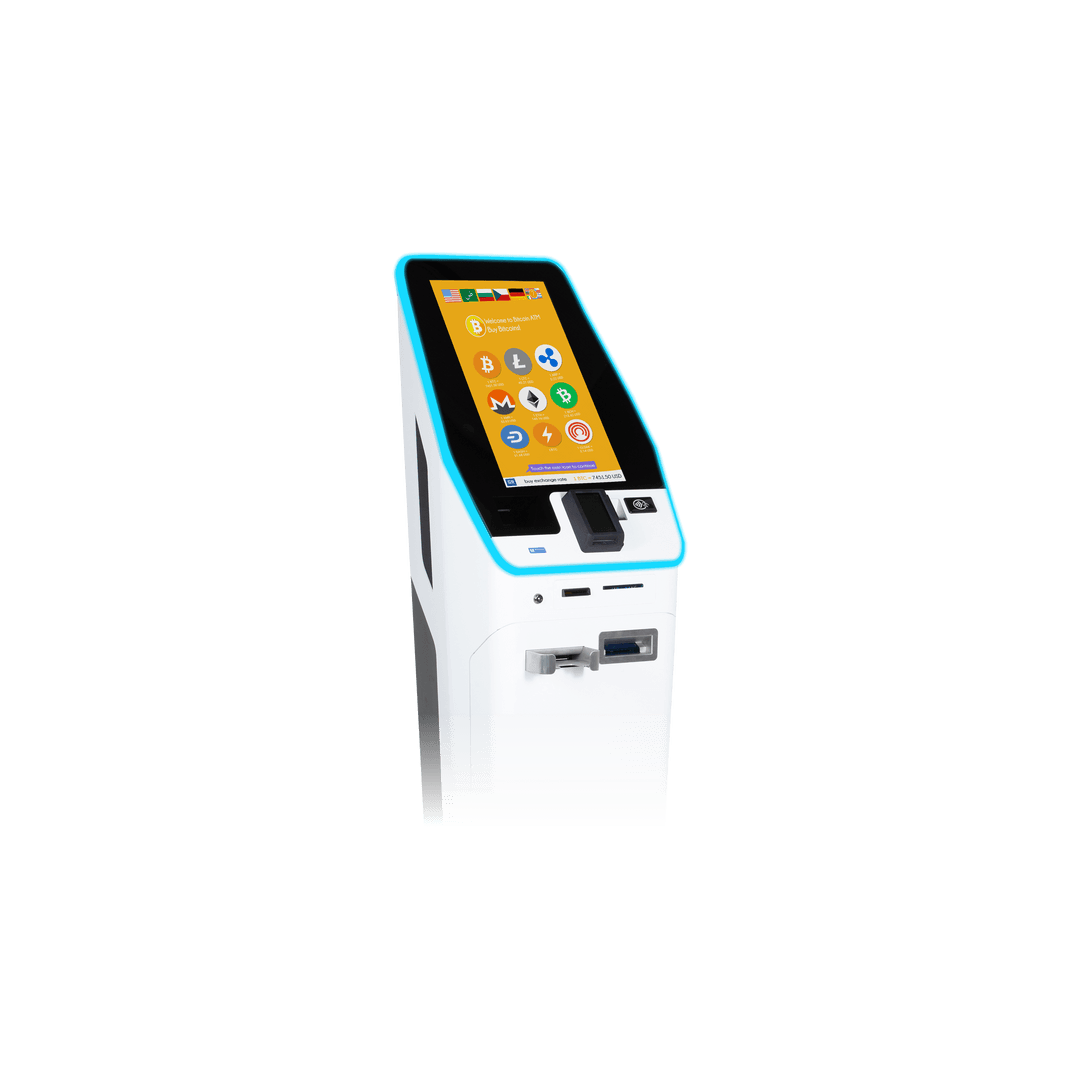

BATMFour

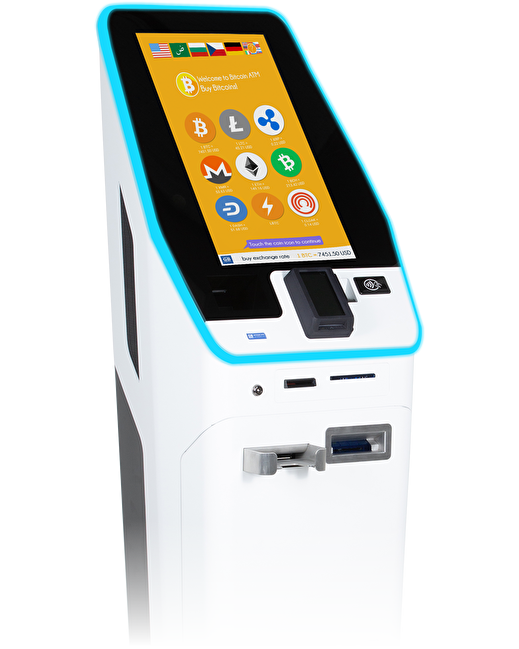

BATMFour

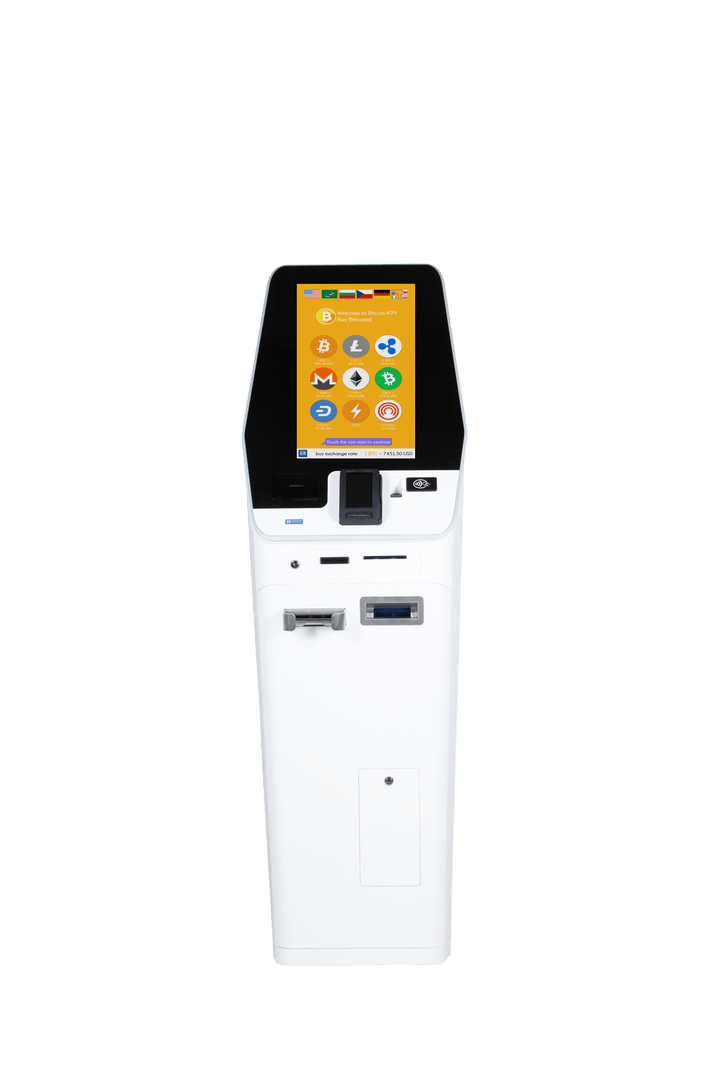

BATMFour

Bitcoin ATMs
Total
$6,499 / $6,499 per unit
Shipping fees are not included
